YNS020 LIQUID LEVEL CONTROL FOR WELL OR TANK

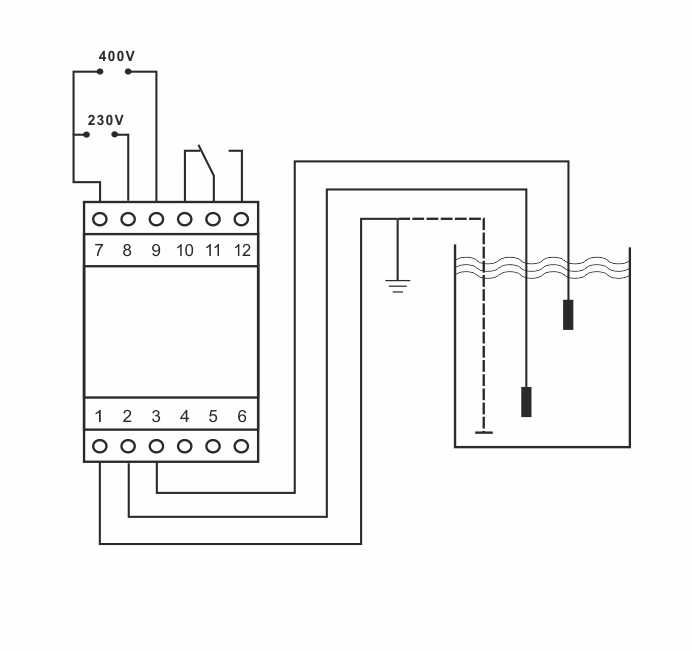

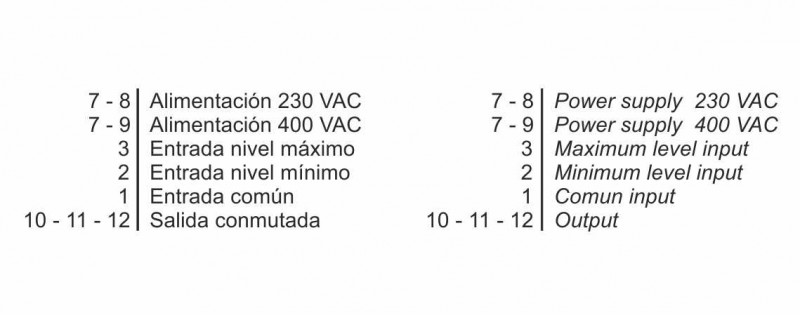

Connections terminals Connections scheme

LIQUID LEVEL CONTROL FOR WELL OR TANK



Level control for non-flammable and non-explosive conductive liquids.
Control over well or tank level.
Indication of the status of the probes.
Output status indication.
Two supply voltages.
Pluggable connectors.

Supply voltage .... 230 - 400 VAC
Output contact....Max. 8A 250 VAC
Format... 36 x 90 x 58.5 mm
Panel fixing.... 35 mm DIN rail (En60715)

Request information
