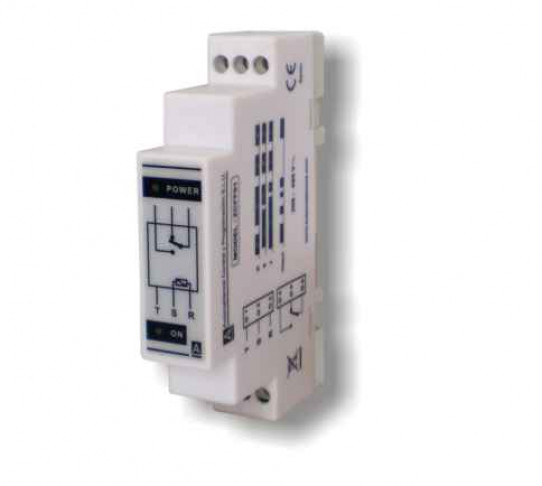

ZCFF02A SEQUENCE AND PHASE FAILURE TIMED 0,5 SEC

SECUENCE CONTROL AND PHASE FAILURE

Description
Especifications

Sequence control and phase failure
Detection of regenerated phases of up to 85% of the nominal voltage
Delay 0,5 seconds in the maneuver when detecting an anomaly

Supply voltage ... 205 VAC at 480 VAC
Output contact .... Max. 8A 250 VAC
Format .... 17,5 x 90 x 58,5 mm
Fixing on panel .... 35 mm track (EN60715)
